FLUX

Low Profile, CCT Selectable, Fire Rated LED Downlight

Flux is a recessed fire-rated downlight ideal for residential and commercial applications. The unit comes with a 3 CCT function which you can change the colour temperature through the front facing switch, you can also change the wattage to suit the light level required.

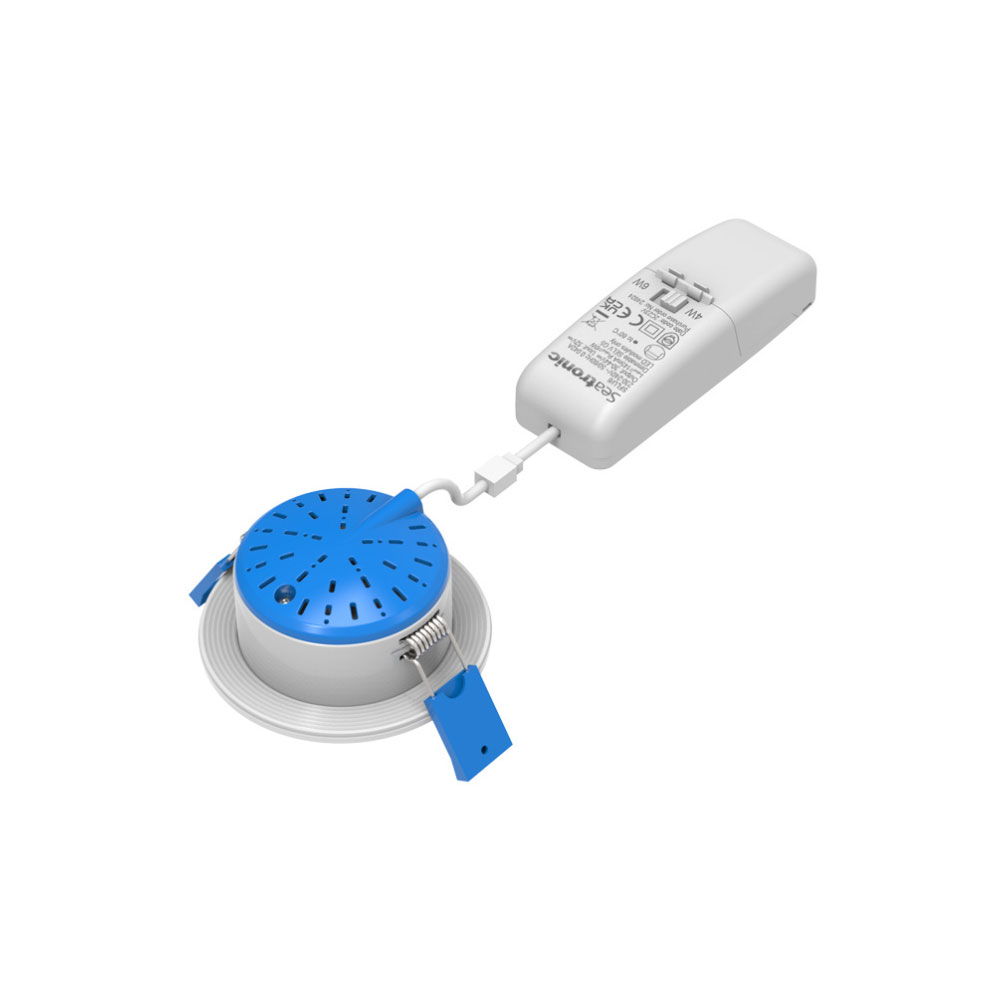

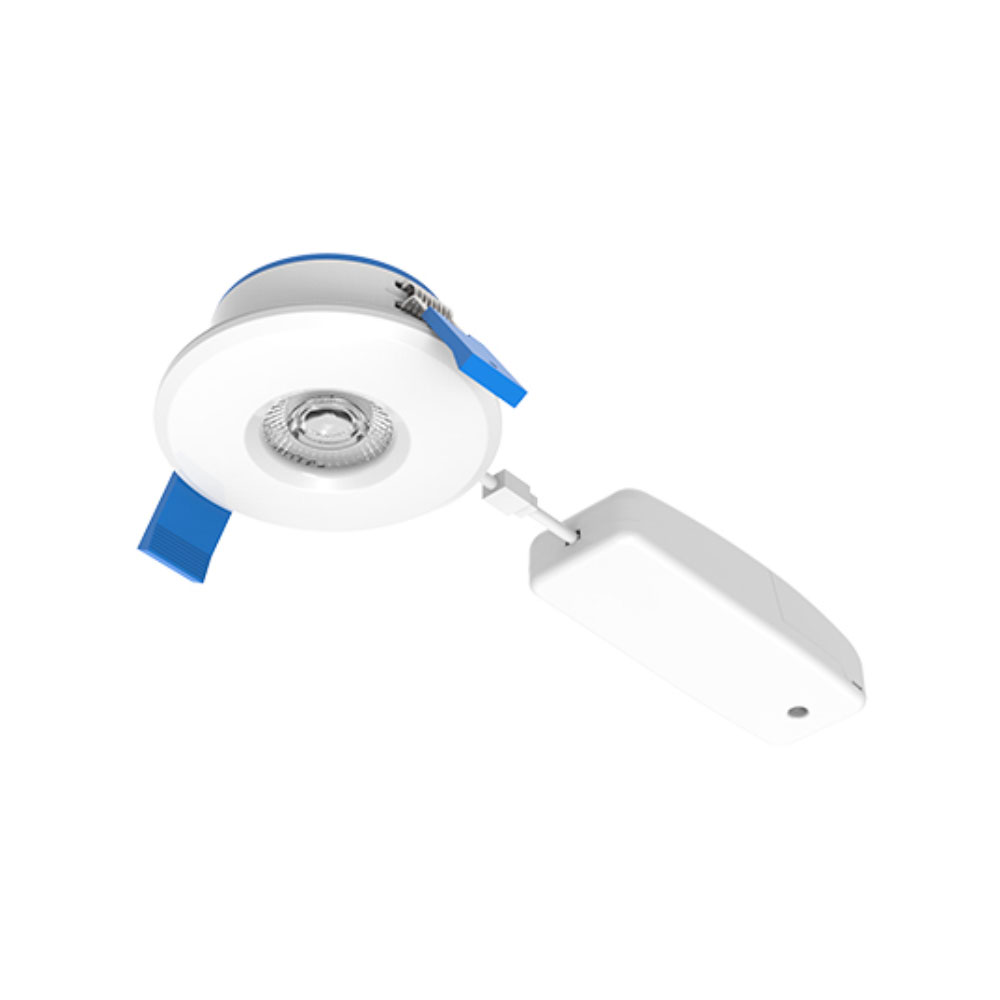

Flux is designed phase dimmable as standard. Supplied with remote driver with push-in loop in/loop out terminal and at a height of 46.5mm,

Flux is the ultimate downlight solution for shallow ceiling voids, it’s 30/60/90min fire rated with solid timber joists and 30min for I-Joist and Metal Web. The bezel is interchangeable and finishes are available in white, black and chrome.

APPLICATIONS:

Amenity lighting in corridors, WC’s, breakout areas, offices, schools, hotels, care homes, shops.

BENEFITS:

· Extra low profile for shallow ceiling voids
· Separate driver with push-in, loop in loop out terminal

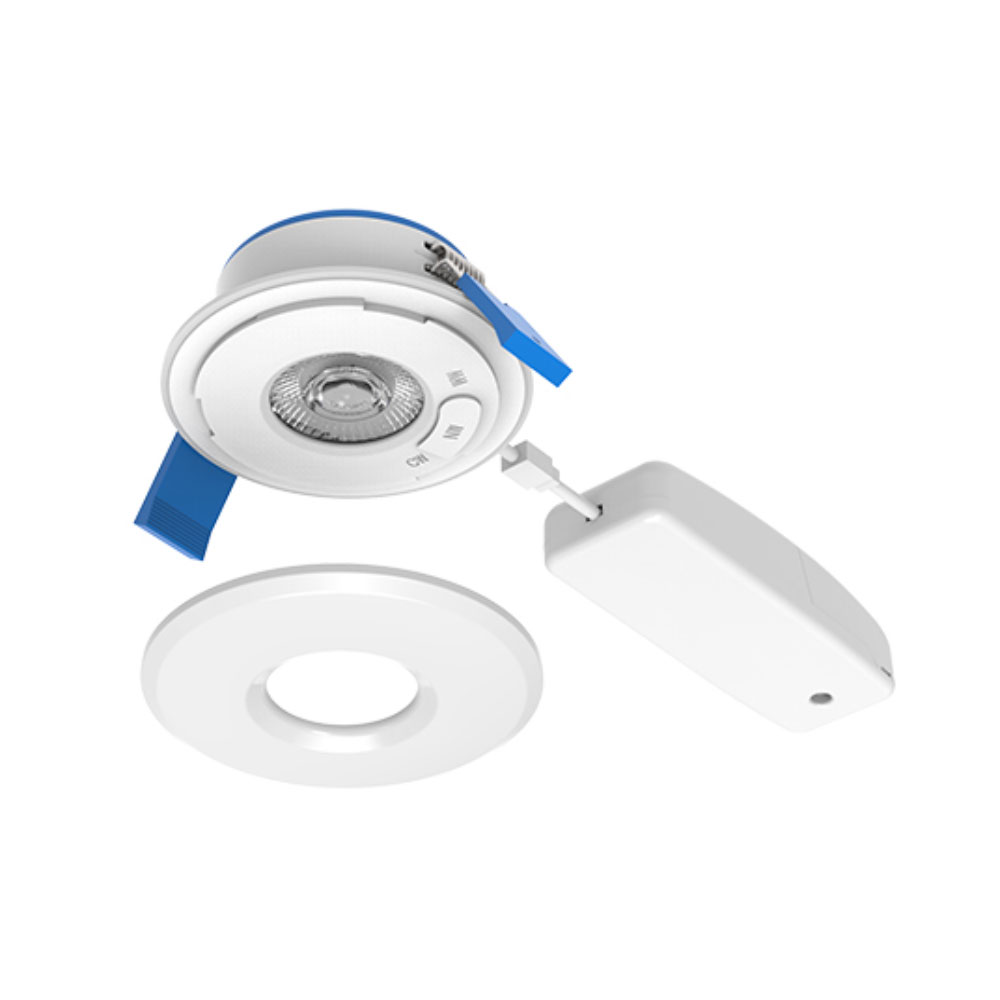

· Interchangeable bezel
· Dimmable with triac dimmers
· 3CCT available, selectable by DIP switch
· Wattage selectable 4W / 6W
· Compliant with building regulations
· Fire rated to 30, 60 & 90 minutes

For pricing and any further information please call us on 0121 726 6999 or make an enquiry via our contact form.

Order code	AP-SFLU
Product	Fire Rated LED Downlight
Colour	White, Matt Black, Satin Chrome or Chrome Bezels
Body	Steel
Mounting	Recessed
Weight	0.188kg
Size	Ø 85mm x 46.5mm
Cutout	Ø 72-75mm
Power	4W/6W wattage selectable
Input	220-240 VAC
IP Grade	IP65 Front / IP20 Back
Insulating class	Class II
CRI	Ra ≥80
Lumen	4W: 400lm / 6W: 600lm
CCT Selectable	2700K / 4000K / 6500K
Maximum Life Time (h)	36.000 hours
Beam angle	67º
Functions	Triac Dimmable
Certifications	CE, UKCA, REACH, RoHS
