Curve – IP65 Bulkhead & Exit Sign

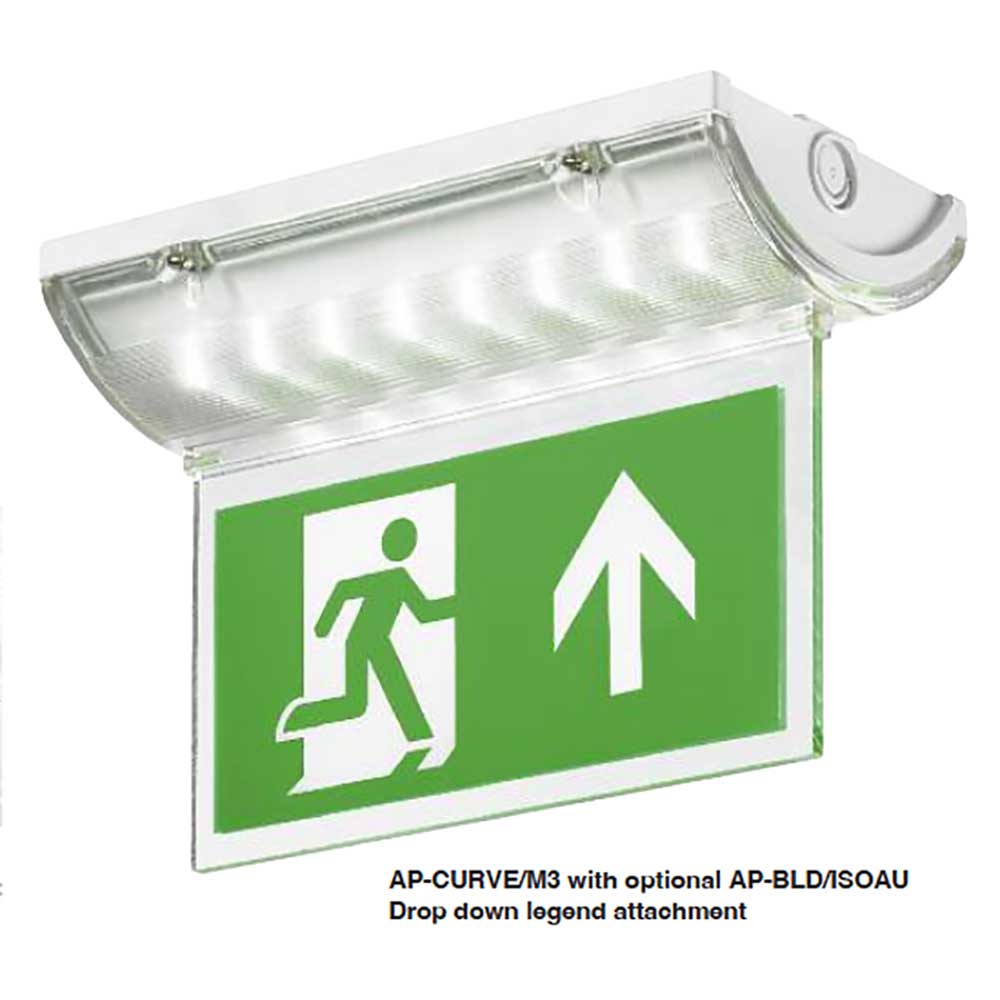

CURVE – IP65 LED Bulkhead and Exit Sign
Neat and compact, the Curve LED bulkhead utilises an IP65 rated polycarbonate base and lens specifically designed to maximise the distribution from the enclosed 16 high output white LEDs and appropriate drive circuit. The Curve is available with a ‘hanging blade’ exit sign legend panelor self-adhesive legend kits.
-
Product: LED Bulkhead and Exit Sign
-
Light source: 16 x white LED (CRI >70)
-
Luminaire Lumens: >150lm (without sign legend)
-
Sign viewing distance: 20m (/BLD)
-
Construction: White polycarbonate base and optical grade, UV stabilised lens
-
Geartray: Hinged white plastic
-
Dimensions: 240mm (L) x 130mm (W) x 50mm (H)
-
Cable Entry: Drilling points in both ends and back
For any further information please call us on 0121 726 6999 or make an enquiry via our quote form below.
| Order code | AP-CURVE/M3 |
| Application | Corridors, Exits, Escape Routes |
| Operation | 3 hours maintained operation on battery power after mains power failure |
| Construction | White polycarbonate base and optical grade, UV stabilised lens |
| Emergency duration: | > 3 hours |
| Finish | White |
| Lumens | > 150 |
| IP Grade | IP65 |
